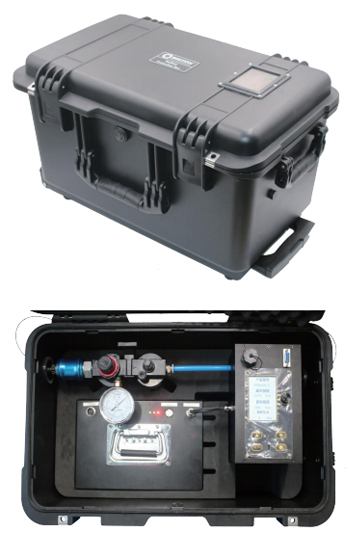

DAC-BOX系列控制器為所有氣動工具提供了簡單易用的操作界面，可通過機械旋鈕或人機界面設置扭矩，操作更簡單便捷，適用于各廠家氣動扭矩工具；
|
型號 |
工作扭矩 |
驅動軸 |
空載轉速 |
氣管尺寸 |
振動a/k* |
進氣口螺紋 |
噪音等級 |
耗氣量 |
重量 |
|

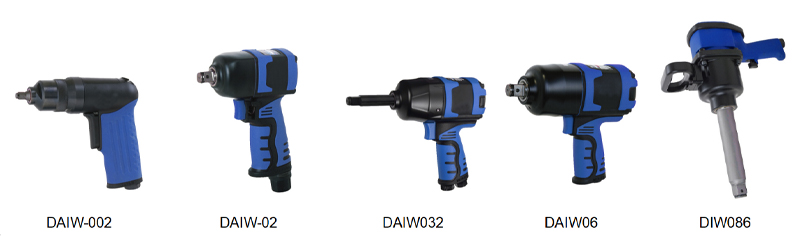

DAIW-002 |
4-20 |
1/4" |
10000 |
10 |
4.8/0.9 |
1/2" |
85 |
60 |
0.63 |
|
DAIW-007 |
13-65 |
3/8" |
10000 |
10 |
4.9/1.0 |
1/2" |
85 |
60 |
0.65 |
|
DAIW-012 |
23-115 |
3/8" |
8000 |
10 |
7.6/1.2 |
1/2" |
90 |
102 |
1.1 |
|
DAIW-02 |
45-225 |
1/2" |
8000 |
10 |
9.1/1.4 |
1/2" |
90 |
102 |
1.2 |
|
DAIW-03 |
56-280 |
1/2" |
8000 |
10 |
8.6/1.3 |
1/4" |
92 |
144 |
1.9 |
|
DAIW-032 |
50-250 |
1/2" |
8000 |
10 |
8.6/1.3 |
1/4" |
92 |
144 |
2 |
|
DAIW-06 |
110-550 |
3/4" |
6500 |
13 |
11.1/1.5 |
3/8" |
93 |
228 |
3.25 |
|
DAIW-066 |
100-500 |
3/4" |
6500 |
13 |
11.1/1.5 |
3/8" |
93 |
228 |
3.95 |
|
DAIW-08 |
156-780 |
1" |
8000 |
13 |
8.6/1.3 |
3/8" |
94 |
390 |
10.9 |
|
DAIW-086 |
150-750 |
1" |
8000 |
13 |
8.3/1.3 |
3/8" |
94 |
390 |
12.4 |
|
DAIW-10 |
210-1050 |
1" |
8000 |
13 |
8.3/1.3 |
3/8" |
94 |
500 |
15.4 |
|
DAIW-18 |
340-1700 |
1-1/2" |
3600 |
13 |
9.3 |
3/8" |
94 |
600 |
18 |

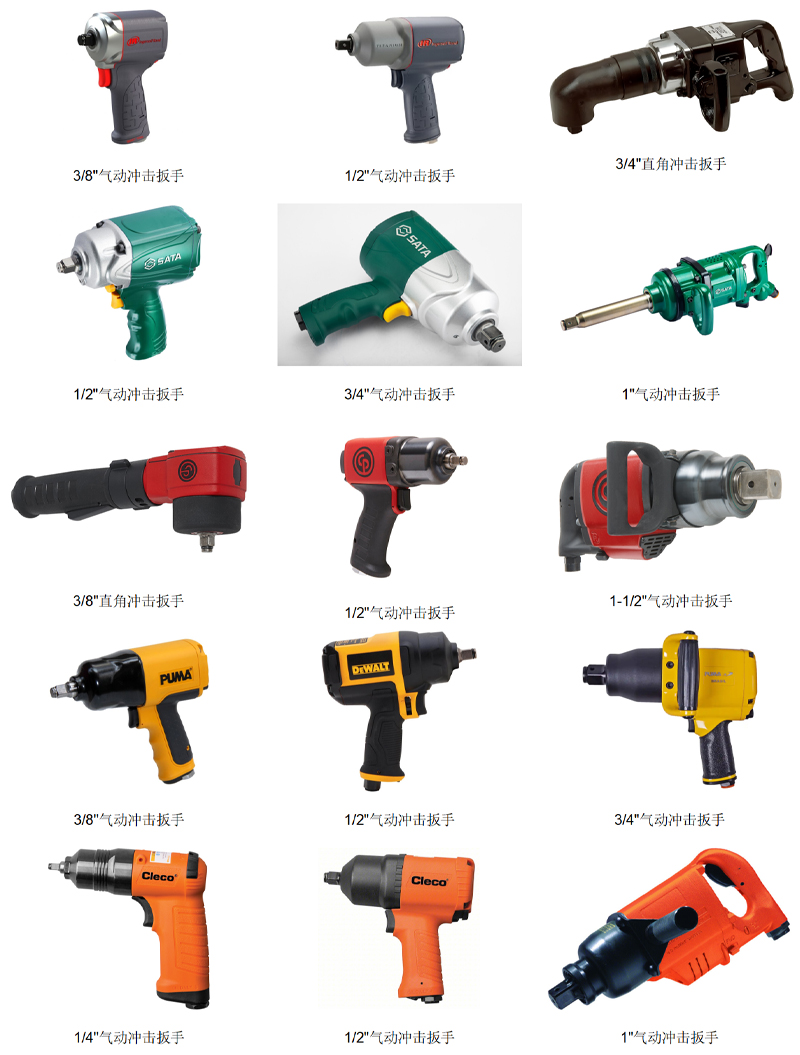

可為其配套（非案例，圖片僅做展示用）
